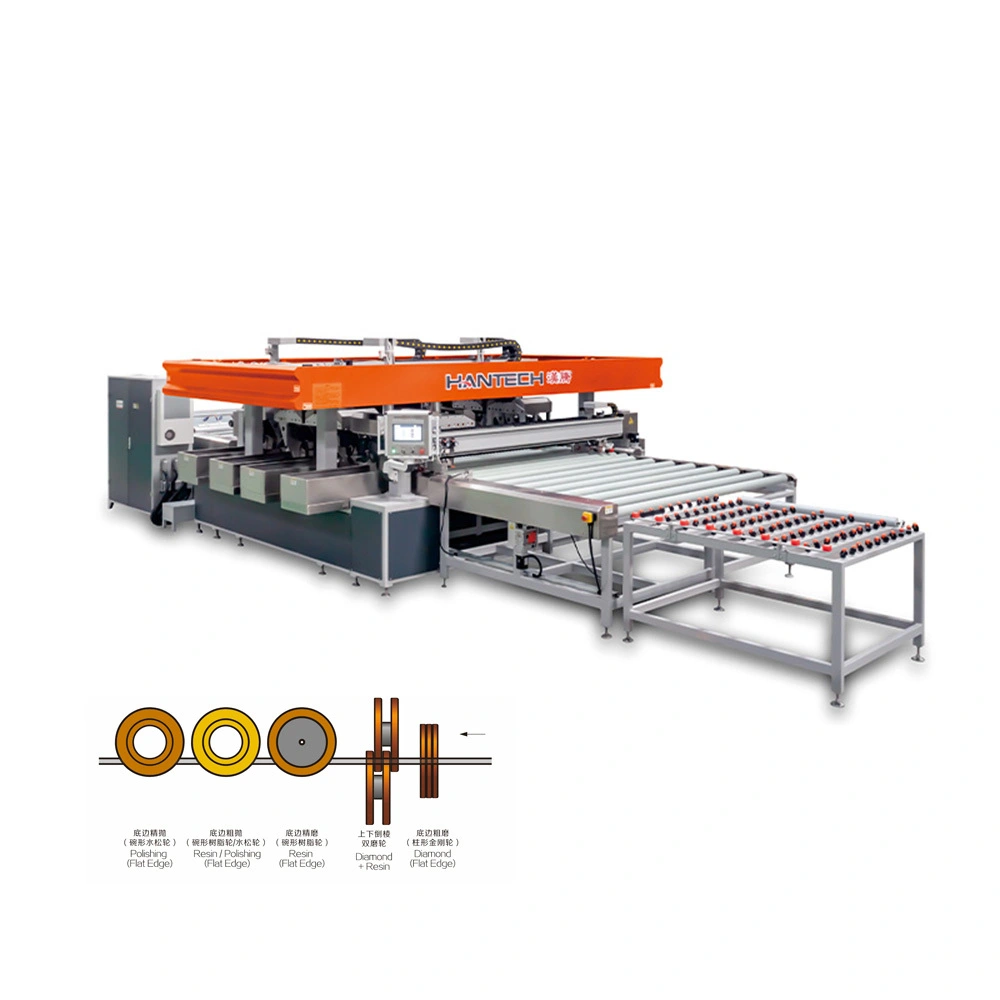

Glass Grinding Machine I Series - Arrising + Four Wheels for Flat Edge Processing
Caratteristiche della macchina
● Grinding Wheels Configuration can be flexibly combined according to the glass thickness and processing requirements.
● Meet various processing requirements and ensure high - quality edge grinding.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
따옴표를 요청하거나 우리에 대한 더 많은 정보를 요청하려면 아래 양식을 작성하십시오. 귀하의 메시지에서 가능한 한 자세하게 자세히 설명하며 가능한 한 빨리 귀하에게 되돌아 갈 것입니다. 우리는 새로운 프로젝트 작업을 시작할 준비가되어 있으며 지금 문의하기 위해 지금 문의하십시오.
Paramètres du produit
| Numéro de modèle | HSZM16I | HSZM20I | HSZM25I |
| Wheels Configuration | 8 Grinding Heads, 4 Wheels for Upper & Lower Arrising (Diamond Wheel + Resin Wheel) + 1 Diamond Wheel for Flat Edge (3 layers) + 3 Cup Wheels for Flat Edge Processing | ||
| Size Range | 180*650~1600*2500mm | 180*650~2000*3000mm | 180*650~2500*3000mm |
| Thickness Range | 4-12mm(Standard 4-8mm,Option 6-12mm) | ||
| Vitesse | Arrising 5-40m/min | ||
| Capacité | 4.0p/min(eg.4*1000*1000mm) | ||
| Working Height | 900~960mm | ||
| Machine Size(L*W*H) | 6850x4300x2150mm | 7350x4700x2150mm | 7350x5200x2150mm |
| Poids | 4.5t | 5.0t | 5.5t,30pcs φ80 footplate |
| Pouvoir | 45kw，3-phase4-wire,380V/150Hz | ||
