Otomatik Yatay Cam Dikiş Makinesi M8 Serisi-33H/I Serisi (Jumbo <000000> Kalın Cam için)

The Automatic Horizontal Glass Seaming Machine M8 Series - 33H/I Series is custom - made for the processing of extra - large and extra - thick glass. It adopts advanced technologies and optimized designs. When processing extra - wide, extra - long and thick glass, it is efficient, precise, and the results are stable. It can handle both architectural curtain - wall glass and industrial thick glass perfectly, helping enterprises to undertake special orders and expand their business.

Caractéristiques de la machine

● It is designed to meet the processing requirements of ultra-wide, ultra-long and relatively thick glass.

● The Seaming Machine utilizes a number of advanced technologies and optimized designs.

● Achieves efficient, precise and stable processing results.

soruşturma

Bir değerlendirme yazın

Paramètres du produit

Numéro de modèle	HSZM33H/I

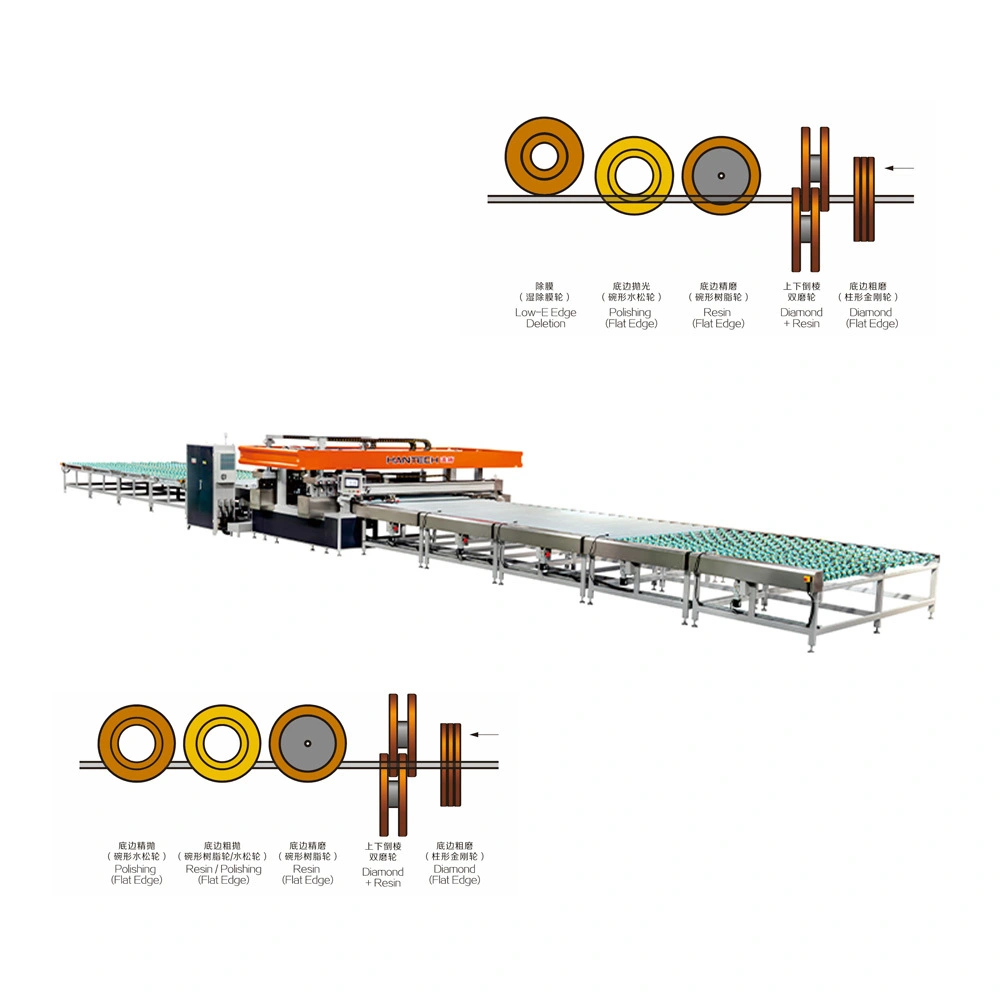

Configuration des roues	8 Grinding Heads, 4 Wheels for Upper & Lower Arrising (Diamond Wheel + Resin Wheel) + 1 Diamond Wheel for Flat Edge (3 layers) + 2 Cup Wheels for Flat Edge + 1 Low-E Edge Deletion Wheel / 1 Cup Wheel for Flat Edge (Customized)
Gamme de tailles	240700~33003000mm (Customized Length, when use our Washer, the Max. Length can be extended 1500mm)
Plage d'épaisseur	4-12mm (Standard Wheels are for T. 6-12mm, if mainly for 4-8mm should be indicated in the contract.)
Vitesse	Arrising 5-40m/min (for 5mm thickness, the recommended speed is 30m/min)
Capacité	4p/min(eg.510001000mm)
Hauteur de travail	900~960mm
*Taille de la machine (L l * H)**	7400x6000x2150mm (For customized lengths, the inlet and outlet sections shall be increased accordingly.)
Poids	6.6t，33pcs φ80 footplate (For customized lengths, the foundation plates shall be increased accordingly.)
Pouvoir	45kW, 3-phase 4-wire, 380V/50Hz (lf the customized lenath is increased accordingly, the electrical load will be approximately one - third of the installed power.)
