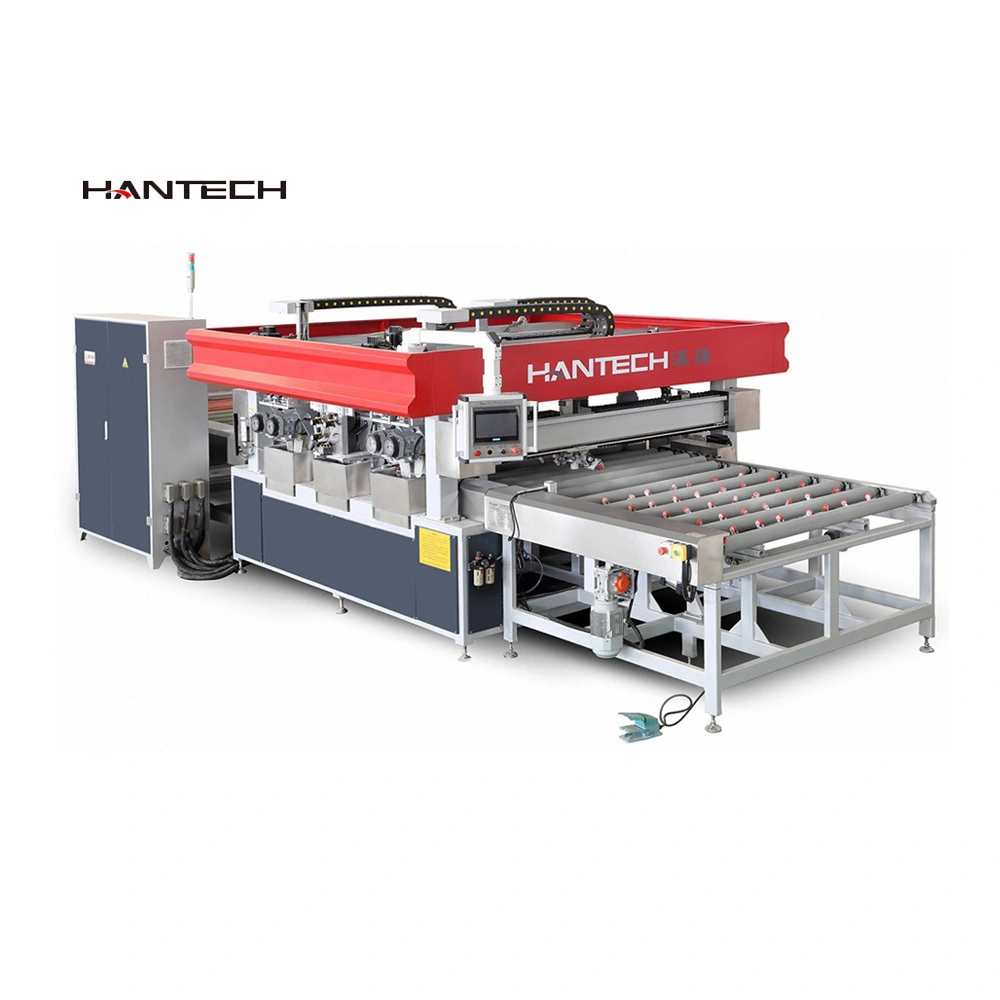

Otomatik Cam Dört Kenar Zımparalama Makinesi F Tipi
The Automatic Glass Four Edge Grinding Machine F Type (HSZM16F, HSZM20F, HSZM25F) is designed for intricate glass edge processing. Its 4 grinding heads, each equipped with a Low - E edge deletion wheel and 4 resin wheels for upper/lower grinding, are suitable for Low - E glass in energy - saving building projects. With a minimum size of 350*650mm, it's perfect for small, precise jobs. The 11 servo and 4 stepping systems ensure smooth, high - precision grinding with tight tolerances. The six - stage power and automatic ID optimize energy use at 12 - 40m/min, making it ideal for high - end furniture and specialized automotive glass production where efficiency and precision are crucial.
Fonction
● Six-stage power, high efficiency and precision.
● Automatic identification.
● Stable and reliable.
● The whole machine has 11 sets of servo and 4 sets of stepping system.
Paramètres du produit
| Numéro de modèle | HSZM16F | HSZM20F | HSZM25F |
| Configuration des roues | 4 têtes de meulage (chacune avec 4 meules en résine pour la partie supérieure) & Lower + 1 Low-E Edge Deletion Wheel) | ||
| Gamme de tailles | 350*650~1600*2500mm | 350*650~2000*3000mm | 350*650~2500*3000mm |
| Plage d'épaisseur | （Standard 4-8mm,Option 6-12mm) | ||
| Vitesse | Arrivée 12-40m/min | ||
| Capacité | 6p/min (par exemple 4*1000*1000mm) | ||
| Hauteur de travail | 900-960 mm | ||
| Taille de la machine (L * l * H) | 6500x3600x2150mm | 7200x4000x2150mm | 7200x4500x2150mm |
| Poids | 4.3t | 5t | 5.5t |
| Pouvoir | 21.5kW | 22.5 kw, 3-phase 4-wire,380V/150Hz | 22.5 kw, 3-phase 4-wire,380V/150Hz |
